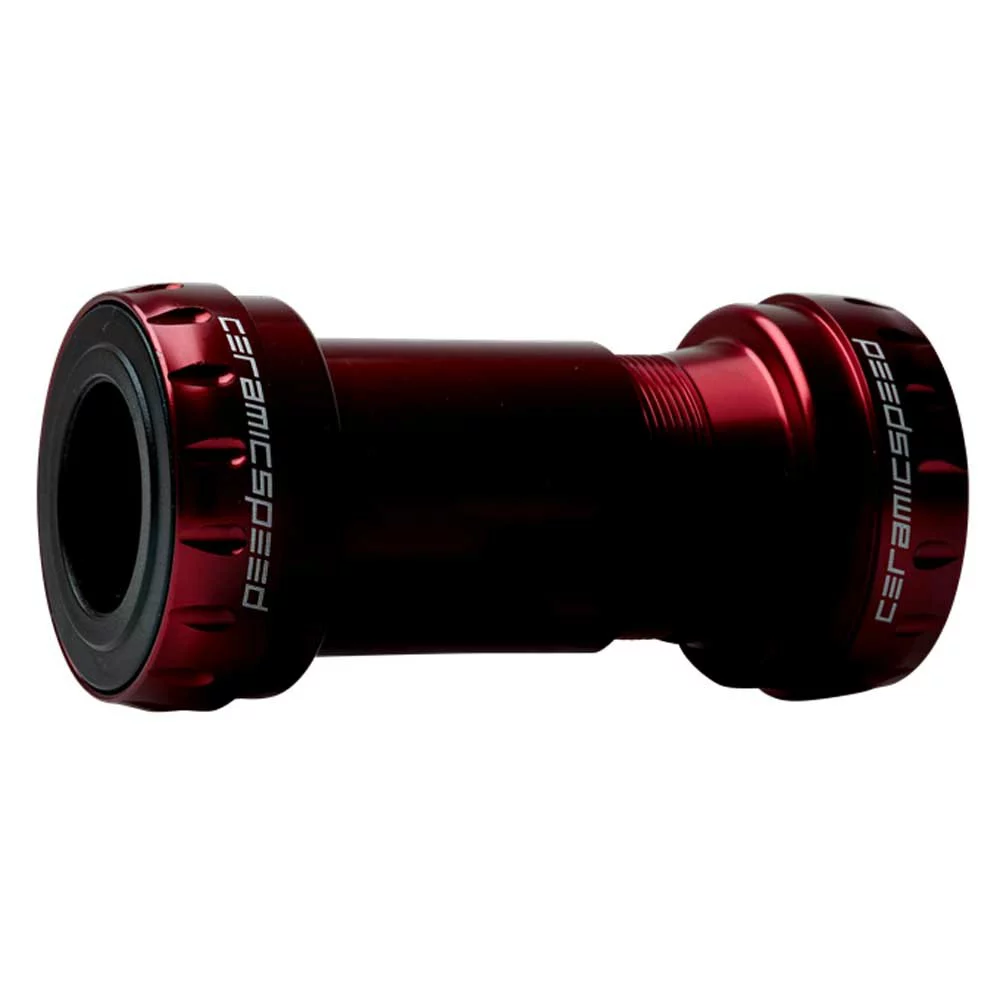

CERAMICSPEED BB30 Shimano Bottom Bracket Cup

The BB30 Shimano Road Coated bottom bracket by CeramicSpeed offers the possibility to install a Shimano Hollowtech II crankset with 24 mm axle diameter in a Road frame with 42 mm shell diameter and 68 mm shell width.

It comes with high-end ceramic bearings, which are characterised by special load capacity and smooth running.

In the Coated version, the bottom bracket also has metal-coated races.

This extends the service life once again considerably – there is almost no wear of the bearings.

Specifications:.

Application:Road, Triathlon & Time Trial.

Type:BB30.

Shell Diameter:42 mm.

Shell Width:68 mm.

Axle Diameter:24 mm (Hollowtech II).

Technical Information:.

Bearings:ceramic.

Bottom Bracket Cup Material:aluminium.

Compatibility:.

– Shimano Hollowtech II cranks.

– FSA cranks w/ 24 mm axle.

– Rotor cranks w/ 24 mm axle.

Features:.

– high-performance bearings with special ceramic balls made of 3rd degree silicon nitride (best achievable degree for ceramic bearings).

– CeramicSpeed bearing balls:15 % harder, 100 % smoother and 99 % more resilient than commercially available ceramic balls.

– ball bearing retainer made of reinforced polyamide, race made of hardened steel with polished channel.

– additional metal-coated race for more performance and durability.

– reduced friction:smoother running.

– handmade in Denmark.

Technology:.

Ceramic Bearings by CeramicSpeed.

CeramicSpeed ceramic balls are rounder, harder, smoother, lighter and more resilient than steel balls and ceramic balls from other manufacturers.

CeramicSpeed ceramic bearings therefore last 3 to 5 times longer than other commercially available bearings.

All CeramicSpeed bearings are manufactured by hand in Denmark under clean room conditions and are subject to a strict four-stage control procedure.

Among other things, the size of the ceramic balls is checked down to the thousandth of a millimetre.

Tests are then carried out in the laboratory or preferably by professionals in training and competition.

CeramicSpeed bottom brackets guarantee you the lowest possible friction, optimised power transfer and maximum durability and also help you save watts and reach the finish line faster.

It´s not about seconds, it´s about minutes!.

Coated.

CeramicSpeed Coated products offer the ultimate in performance and durability.

This is achieved by a unique coating that increases the hardness of the races, so that in combination with the smoothness of CeramicSpeed ball bearings, there is virtually no bearing wear.

The coating is a metal layer which is 75 % harder than hardened steel.

It is applied very thinly (0.003 mm) and evenly over the entire surface of the race and is used both internally and externally for optimum results.
